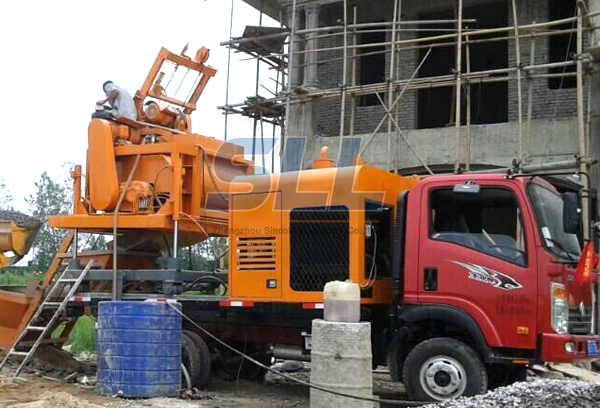

15-30m3/H Mobile Combined Mixing And Pumping Trailer Mounted Concrete Pump
Description of mini concrete pump
The small concrete pump with mixer, can instead of the five or six people work, but also improve the work efficiency many times. Using a forklift to sand and gravel, cement and other materials into mixing pump, operated by remote control mixing hopper feeding pump, and pump itself after mixing, pump to the floor, etc, the whole operation is fairly simple, basic liberated labour, Moreover the mixing pump has small volume, convenient transferring, low energy consumption, etc.
Application
The diesel movable concrete pump has been widely used in water conservancy, electricity, railway, highway, tunnel, mine, national defense, etc. the capacity covers from 15m3 to 90 m3 per hour, vertical distance can reach up to 70 meters high, horizontal distance can ga as far as 250 meters.
Parameter
| Model | JBT30S-13 |
| Mixing Capacity(m3/h) | 15 |
| Pumping Capacity(m3/h) | 30 |
| Mixing Power(kw) | 8 |
| Winding Motor Power | 4.5KW |
| Pumping Motor Power | 37KW |
| Max. Size of Aggregates (mm) | Rubble 40 pebble 30 |
| Hopper capacity x Discharge Height (mm) | 600x1070 |
| Distribution Value | S Valve |
| Cleaning Method | Water Cleaning |
| Overall Dimensions L×B×H (mm) | 5112×2091×3514 |
| Weigh (kg) | 4800 |
Performance characteristic
1. With the concrete mixer pump two machines combined into a machine to move easily, strong, flexible maneuverability.
2. Concrete mixer and pump drive by a worker to make staff and save manual.
3. In order to the replacement of the concrete pistons, the join unit is scalable path between concrete mixer and pump.
4. Diesel or motor puts in a room, scalable activities and reduce the transport link of the horizontal dimensions.
5. The open hydraulic circuit, the system hydraulic pressure is lower, without easily damaged elements such as accumulator.
6. The hopper with a curved, the design of the transition, into rate is high with inhaling efficient.
7. Relays type integration electric system, simple and reliable.
8. Welding the wear plate and wear ring, but the restoration and use low cost.
9. Independence of the water cooling system, efficient.
10. Manual lubricating systems, reliable.
11. The diesel power is applicable to engineering comprehensive.
12. Mixer between rollers and friction pulley by the transmission, reliable not skid.
